Description

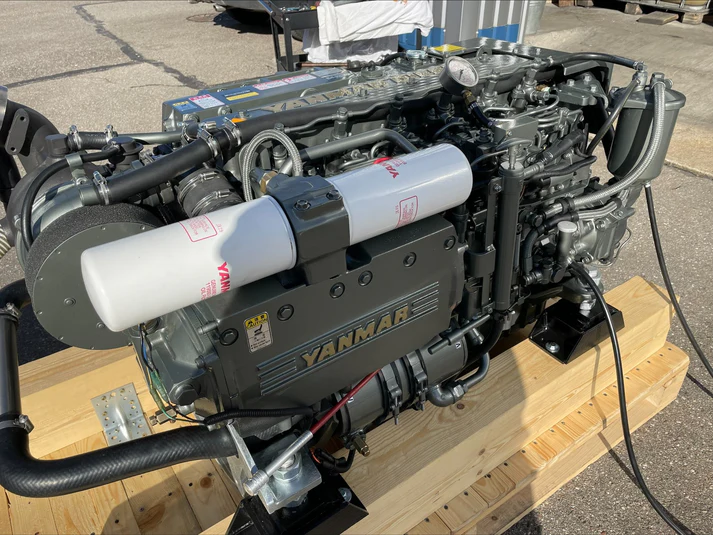

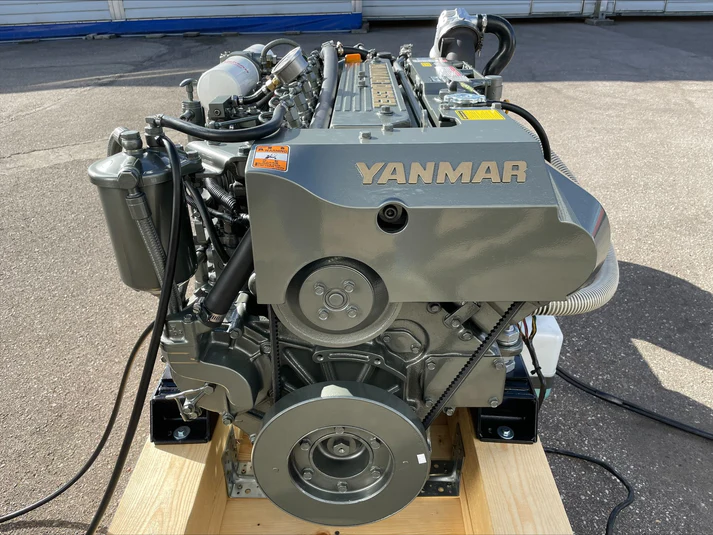

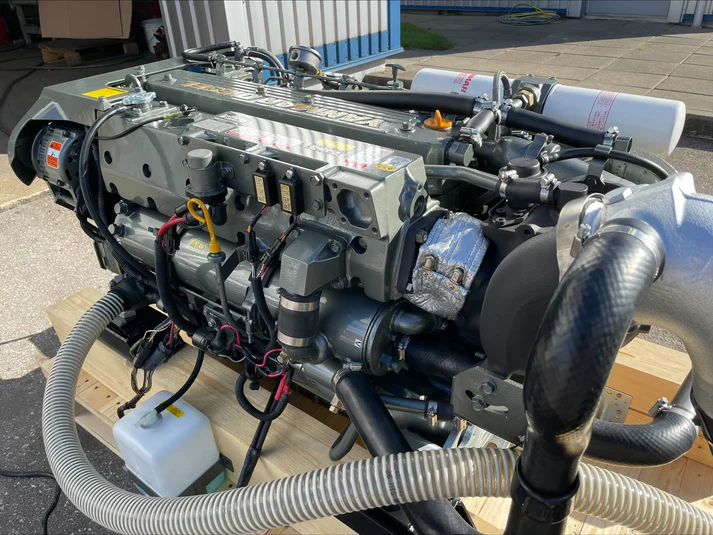

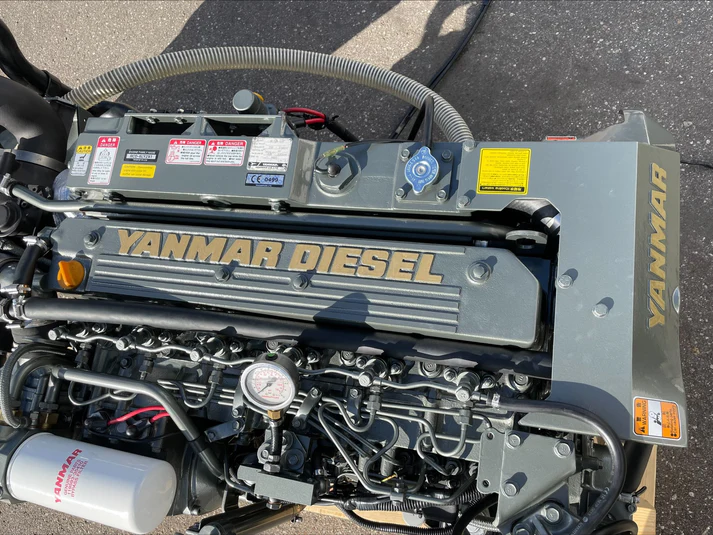

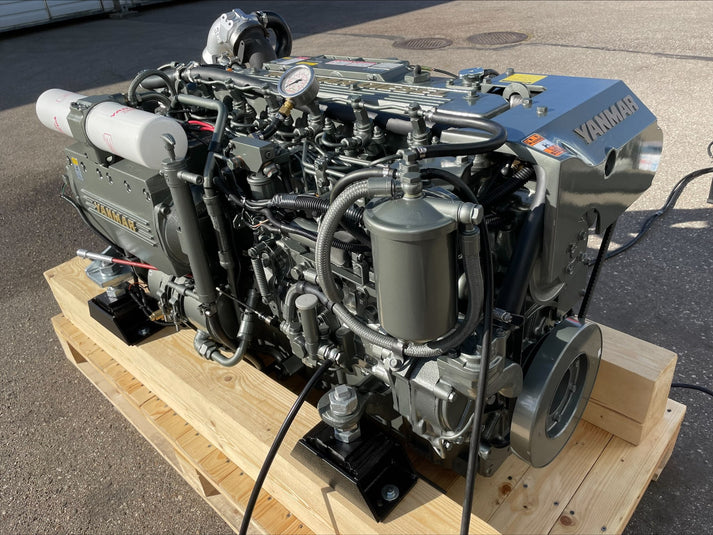

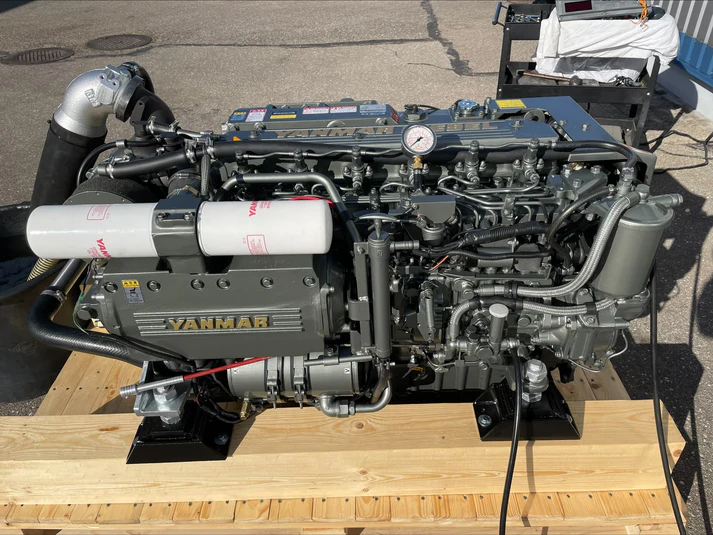

High-performance Yanmar 6LY2A-STP diesel engine delivering 370 horsepower for marine applications.
6LY2A-STP
Specifications
Rated output324 kw / 440 mhp
Rated Speed3300 rpm
Displacement5.813 L / 354 cu. in
No. of cylinders6 cylinders
Cylinder Bore x Stroke106 mm x 110 mm / 4.17 in x 4.33 in
Combustion systemDirect Injection, In-line Pump

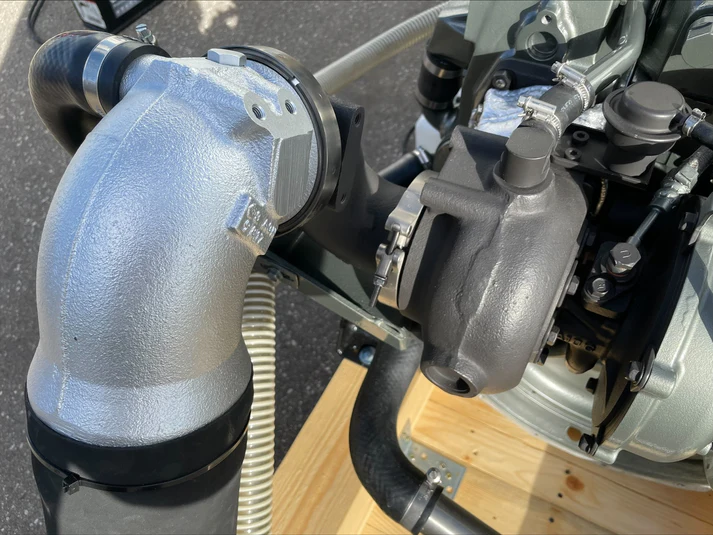

AspirationTurbocharged & Intercooled
Alternator12V – 80A
Dry weight without gear535 kg / 1179 lbs
Dimensions1428 mm x 692 mm x 736 mm

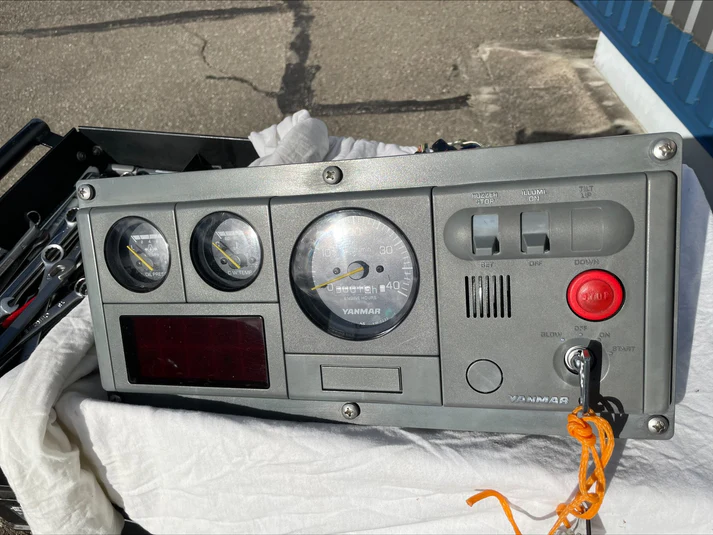

ControlsMechanical
CertificationsRCD 1 IMO Tier 2 EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Length measured with KMH60A gearbox & high-riser elbow
(Dimensions may vary with other gears/elbow)
