Description

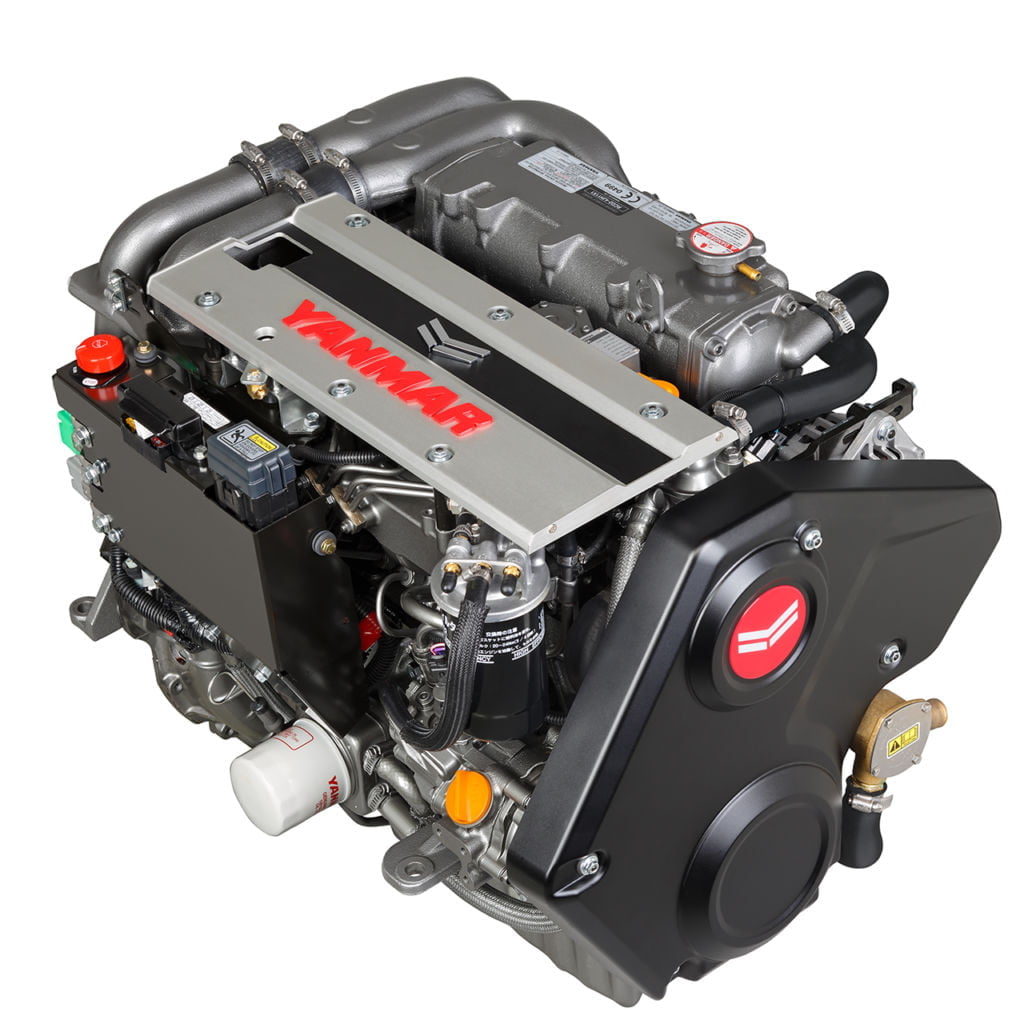

Reliable Yanmar 4JH110 diesel engine with 110 horsepower for smaller marine vessels.
4JH110
Specifications
Rated output80.9 kw / 110 mhp
Rated Speed3200 rpm
Displacement2 L / 122 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke84 mm x 90 mm / 3.31 in x 3.54 in
Combustion systemDirect Injection, Bosch Common Rail System
AspirationTurbocharged & Intercooled
Alternator12V – 125A
Dry weight without gear229 kg / 505 lbs
Dimensions909 mm x 613 mm x 675 mm
ControlsMechanical (optional – VC20 system)
CertificationsRCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM4A2 marine gear
(Dimensions may vary with other gears/elbow)
